Huawei WS7200 WIFI AX3 Quad-core WI-FI 6 Plus Mesh Router

HUAWEI AX3 WS7200 Pro Speed Revolution has Larger Bandwidth with 160 MHz, High-Speed
AX3 and Wi-Fi 6-enabled HUAWEI phones are the perfect pair because both are equipped with HUAWEI’s self-developed Wi-Fi chipset, which support 160 MHz frequency bandwidth. This lays the foundation for Chipset Synergy, bringing out optimal speed and efficiency.

Huawei Ax3 (quad-core) WS7200 Specifications:

• Wired network interface: Provide 4 10M/100/1000M adaptive rate Ethernet interfaces, support WAN/LAN adaptive (network port blind plugging)
• Wireless LAN interface: (WLAN) dual-band concurrent, 2976Mbps (2.4GHz: 574Mbps, 5GHz: 2402Mbps)
• Equipment type: wireless router, smart router, home router
• CPU Lingxiao quad-core 1.4GHz CPU, RAM 256MB ROM128MB
• Wireless parameters:
  Transmission standard 802.11ax/ac/n/a 2*2&802.11ax/n/b/g 2*2, MU-MIMO
  Wireless frequency band 2.4GHz&5GHz, support dual-band optimization
  Antenna gain: 5dBi
• Wired specifications: network port transmission protocol 802.3, 802.3u, 802.3ab
  Software function: Mobile App supports Huawei Smart Life APP local/remote management.
• WiFi mode supports three modes: through the wall, standard and sleep QoS function supports device speed limit: the bandwidth of the device is limited by the MAC address.
• Security function: support Trust Zone, smart device security, Wi-Fi access authorization, Wi-Fi anti-brute force cracking, automatic blocking of cookies; support a new generation of wireless encryption protocol WPA3; support firewall, DMZ, DoS attack protection, etc.
• Features: Huawei Share One Touch Internet, Internet protection for children/elderly people, mobile game acceleration, online acceleration, dual-frequency optimization, blind plug-in of the network port, automatic channel optimization in time,
• Huawei HiLink smart home, 802.11 v, IPv4 / IPv6, PPPoE/DHCP/static IP/MAC address cloning/bridge WAN Internet access, Wi-Fi relay, Wi-Fi timer switch, guest Wi-Fi, network equipment management, MAC address filtering, VPN transparent transmission, DMZ/virtual server

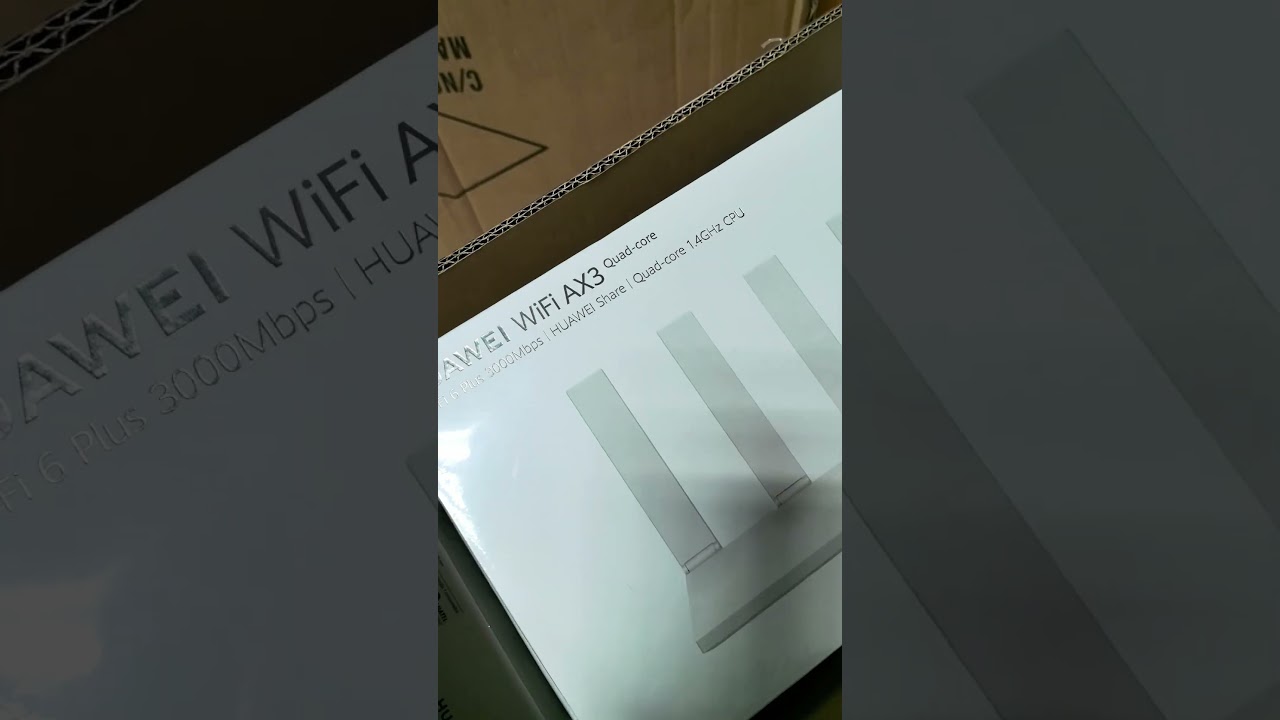

Huawei Ax3 WI-FI 6 Router Ax7200 Images:

Huawei WS7100 AX3 product list Huawei WS7100 AX3 Dual-core WI-FI 6 Mesh Router

Hardware specifications of Huawei WS7200:

1. Wired network interface: Provide 4 10M/100/1000M adaptive rate Ethernet interfaces, support WAN/LAN adaptive (network port blind plugging)
2. Wireless LAN interface: (WLAN) dual-band concurrent, 2976Mbps (2.4GHz: 574Mbps, 5GHz: 2402Mbps)
3. Power specification: 12V DC, 2 A, whole power consumption: less than 24 W
4. Hi button supports HiLink one-key pairing, compatible with WPS
5. Independent reset button
6. Antenna type: Four external high-performance antennas
7. Attributes:
   Ws7200 size: 225mm x 159.2mm x 39.7mm
   weight: about 403g
8. Software name: Huawei terminal home router communication management software V6.0
