B315 Huawei 4G Home router

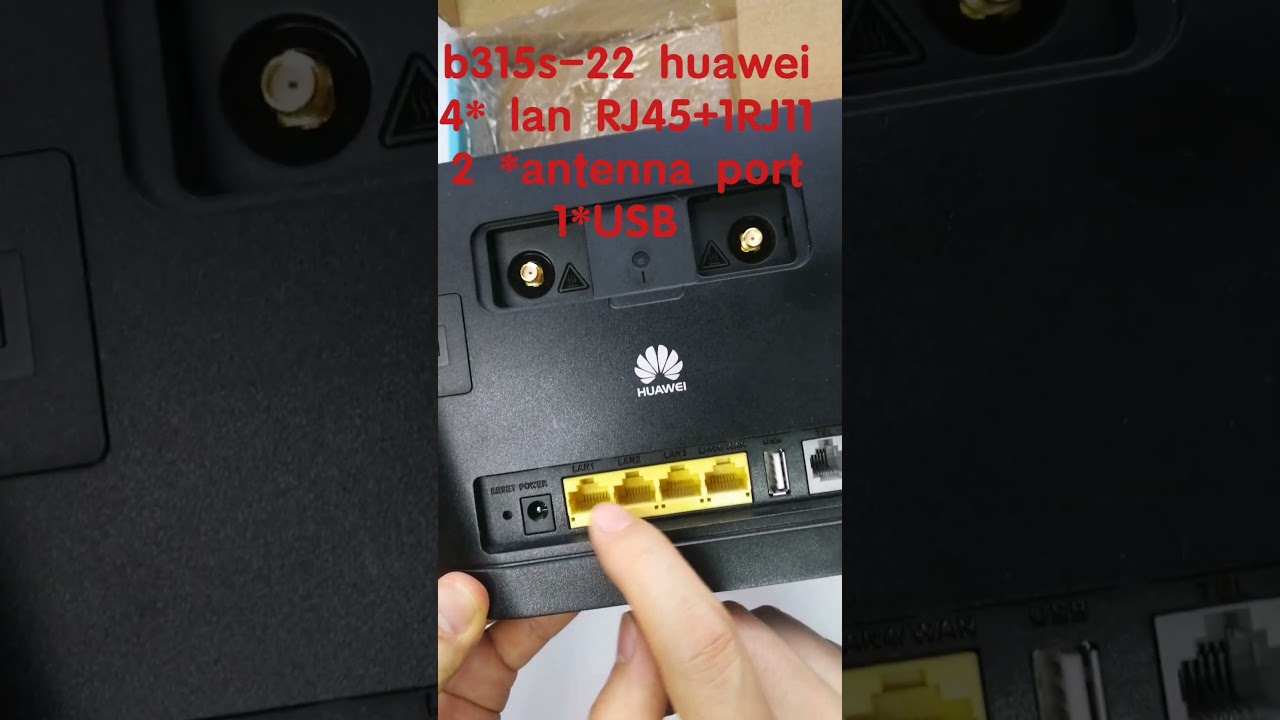

Huawei B315 is a new 4G LTE CPE with LTE Category 4 technology. Huawei B315 could achieve LTE connection of up to 150Mbps through its Gigabit Ethernet port. There are four Ethernet ports for LAN/WAN. It also features a USB 2.0 port for HDD, flash drives, network storage devices and printers. The B315 LTE CPE could cover smoother wireless network for 250 meters. Even after a successful upgrade, you can easily restore software to the previous version. Simply hold the WPS and Power buttons for a seamless rollback.
Huawei B315s-22:
LTE Band: FDD800/900/1800/2100/2600Mhz,TDD2600Mhz
4G LTE: 800/900/1800/2100/2600Mhz
4G/3G:HSPA/UMTS 2100/900MHz
GSM/GPRS/EDGE 850/900/1800/1900 MHz
| Category | Spec item | Description |
| Basic Info | Model Name | B315s-22 |
| type | CPE | |
| Dimension | 166.0*120.2*40.2mm | |
| Weight | 300g | |
| Color | White/Black | |
| Network | 4G/3G | |
| Air Interface | Technical Standard | Compatible with WCDMA, FDD-LTE, TDD-LTE |
| Default 802.11b/g/n | ||
| Frequency | LTE: B2.4.5.7.12.17.28 | |
| WIFI | 2.4G, WIFI 2*2 MIMO,802.11 b/g/n | |
| Performance | Maximum Data Throughput | LTE CAT 4 |
| FDD-LTE(DL/UL): 150Mbps/50Mbps | ||
| HSPA+ (DL/UL): 21/5.76Mbps | ||
| WiFi : Max 300Mbps | ||
| Hardware | Receive Diversity | Support Receive Diversity |
| BB Chipset | ZX297520V3 | |
| WiFi Chipset | RTL8192ES | |
| WiFi Users | 32 | |
| power consumption | <10W | |
| Power Voltage | DC12V/1A | |
| USIM/SIM | support 2FF/3FF/4FF SIM card optional support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM | |
| Card; push-push SIM slot | ||
| LED | LED indicators | |
| Antenna | 2 external LTE | |
| Buttons | Reset, WPS, Power | |
| Ethernet | 1WAN/LAN | |
| RJ11 | Yes | |
| Reset | Pin-hole | |
| ESD | Contact±8KV, Air±10KV | |
| USB port | Yes |
Other Huawei B315 router, please check stock status with our sales directly.
