This 4G LTE router with SIM card
Category 4 150MBps(DL)
Support up to 32 wifi users
B311s-220 Network supports:
4G LTE: B1/B3/B5/B8/B26/B28
3G UMTS: B1/B5/B8
B311-221 Network supports:
4G LTE: B2/4/5/7/28 (700/850/AWS (1700/2100)/1900)
3G UMTS: B2/B4/B5
Huawei B311 is a new 4G LTE CPE with LTE Category 4 technology.It can access to up to 32 WIFI devices, which is ideal for home users or entertainment and information exchange hub.
It supports multi-devices simultaneous high speed access, perfect for SOHO’s and small
businesses with its connectivity options of the world.
Item | Description |
Model | B311s-220 |
Product type | 4G CPE router/WIFI router |
WIFI | 802.11b/g/n, 2.4GHz 802.11b/g/n2x2 MIMO up to 300Mbps. |
WIFI users | Maximum 32 users |
Data service | UP to DL 150Mbps (64QAM) and UL 50Mbps (16QAM) |
Working Band | 4G LTE: B1/B3/B5/B8/B26/B28 |
UMTS: B1/B5/B8 | |
Voice service | CS/ VoIP (Optional) / VoLTE (Optional) |
Lan port | 1 GE port for LAN/WAN |
VPN service | L2TP, PPTP |
Compare with B311-211
The B311-220 has the following constraints:
1, When the IP Pass-Through mode is enabled, the HOTA function cannot be used.
2, When the L2TP/PPTP VPN client function is enabled, the throughput performance will slow down.
3, A maximum of 32 devices can be connected to the WLAN in theory; the actual number of devices that can be connected and served depends on actual conditions.
FAQ
How do I restore factory settings?
When the router is turned on, press the Reset button for approximately 3 seconds using a pointed object until the Power indicator starts to blink.
Restoring factory settings will restore the settings to the default. You can reconfigure them after the router is restored.
What should I do if I forgot the Wi-Fi password or the login password for the web based management page?
Restore the router to its factory settings and then use the default Wi-Fi password and login password to try again.
What should I do if the indicator is red or an Internet connection cannot be established?
1 Check if the SIM card is inserted. Refer to the Getting Started section for the right size of SIM card and the right way to insert it into the slot.
2 If the issue persists, restore the router to factory settings and try again.
3 Contact your carrier to check if your SIM card is out of service. If it’s a new card, check if it has been
activated
What should i do if the internet speed is slow?
1 Check the Signal strength indicator on the router. If it shows weak signal , adjust the router’s direction or
move it close to a window to improve signal reception.
2 If your device is connected to the router over Wi-Fi, adjust your device’s position to receive better signal.
3 Restart the router and your device, and try again.
4 Check if you have reached your data traffic limit.
If you are experiencing any other issues with the router:
1 Restart the router.
2 Restore the router to its factory settings.
3 Contact your carrier
Weight and Dimensions:
Weight: approximately 350g
Dimensions: 181mm x 126mm x 36mm

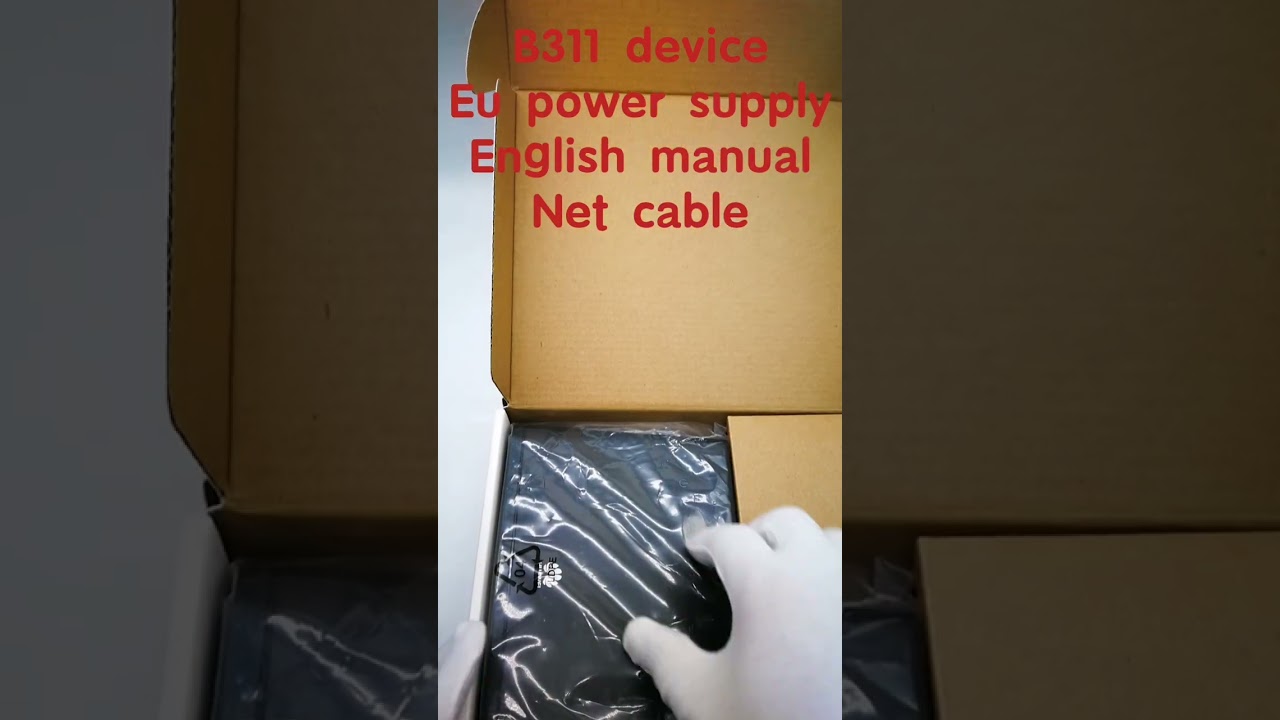

Package:
Packing List:
1x Wireless Gateway
1x Power supply adapter
1x Quick Start
1x Ethernet cable
1x Warranty card
1x Phone cable
Huawei B311s-220 vs B311-221
1,Product show on Huawei B311s-220
2.Product show on Huawei B311-221
